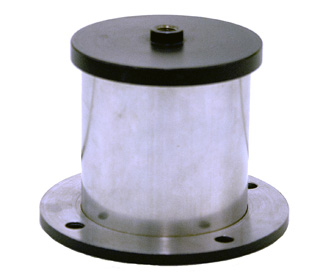

ABS1-5MB - Mini-B Air Cannon



RECOMMENDED ACCESSORIES

SV1-5ABS - Sweeper Valve, MiniB
46123 - Filter/Regulator 3/8" NPT
CT4 - Air Cannon 4 Output Timer NEMA 4, 12
MBM-1 - Mounting Plate, Mini B
MBM-1ST - Mounting Plate (Studded), Mini B
MBM-1C - Mounting Plate, Mini B (conical bin)
1-1/4NPTX90 - Elbow 90 Street - MiniB
1-1/4CLOSE - 1-1/4 Close Nipple MiniB
D1 - Diffuser Fitting for ABS1-5MB
1-1/4NPTX45 - Elbow 45 Street - MiniB
45-E-1-1/4 - Elbow 45 - Mini-B
90-E-1-1/4 - Elbow 90 - Mini-B
86123 - Ball Valve 3/8"
QE3 - Quick Exhaust Valve ABS-1-1/2
1ABS16 - Solenoid Valve 3/8, 3-W, NO, 120V

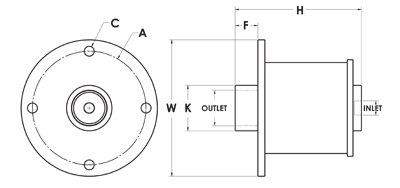

Dimensions

A 5 in
128 mm
C* 7/16 in
12 mm
W 6 in
153 mm
H 5-9/16 in
142 mm
K 2 in
51 mm
F 1 in
26 mm
INLET 3/8 NPT
OUTLET 1-1/4 NPT
* Bolt Size

Tech Data

Smallest Industrial Air Blaster in the World - only 4" x 6"!


  • Powerful blast fluidizes any type of material
  • Virtually SILENT operation
  • Operates on plant air from 10 to 120 PSI
  • Compact, simple design for maximum flexibility and low maintenance
  • Easy, fast installation
  • Patented design backed by VIBCO's engineering expertise and 24 hour technical support
