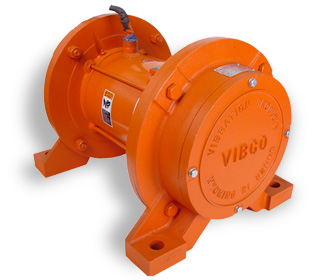

4PX-5000 - Explosion Proof Vibrator



RECOMMENDED ACCESSORIES

SC-4 - Safety Cable
VMX-4 - Mounting Bracket 4PX-5000

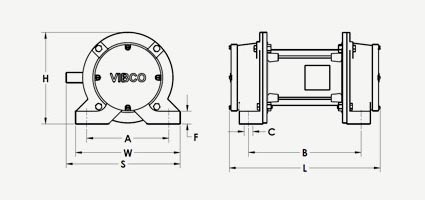

Dimensions

A 13 in
331 mm
B 17 in
432 mm
C* 1 in
26 mm
L 20-1/2 in
521 mm
W 15-7/8 in
404 mm
H 14-1/2 in
369 mm
F 1-1/2 in
39 mm
S 16-1/2 in
420 mm
* Bolt Size

Tech Data

VPM 1800
HP 2
Phase 3
Volt 230/460
Amp 5.2/2.6
Force lbs 1700-6500
Force Newtons 7562-28913
dB 75
Weight 298 lbs

Trust VIBCO Quality and Engineering for your Explosion-Proof Environment


  • American-made explosion-proof motor
  • Adjustable eccentric settings allow you to fine tune force output
  • Some models feature oversized roller bearings to ensure extra long life

Rated for Class I, Grp. D, Class II, Grp. F & G, Div, 1 & 2. (UL listed)
