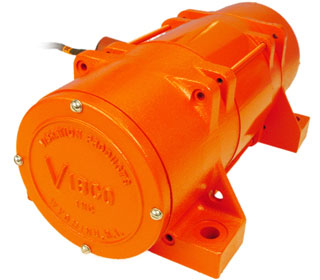

4PX-700-1 - Explosion Proof Vibrator



RECOMMENDED ACCESSORIES

SC-4 - Safety Cable
4X6.25CH-IN - Channel Iron (Inches)
VMX-2 - Mounting Bracket (2PX-450;4PX-700)

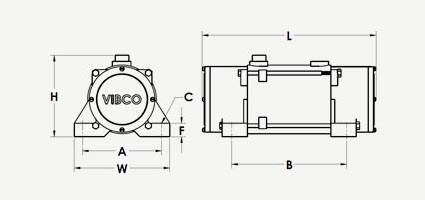

Dimensions

A 6-5/8 in
169 mm
B 9-3/4 in
248 mm
C* 5/8 in
16 mm
L 14-1/2 in
369 mm
W 11-1/4 in
286 mm
H 6-1/8 in
156 mm
F 1-3/16 in
31 mm
* Bolt Size

Tech Data

VPM 1800
HP 1/4
Phase 1
Volt 115/230
Amp 5.6/1.8
Force lbs 300-700
Force Newtons 1334-3114
dB 64
Weight 67 lbs

Trust VIBCO Quality and Engineering for your Explosion-Proof Environment


  • American-made explosion-proof motor
  • Adjustable eccentric settings allow you to fine tune force output
  • Some models feature oversized roller bearings to ensure extra long life

Rated for Class I, Grp. D, Class II, Grp. F & G, Div, 1 & 2. (UL listed)
