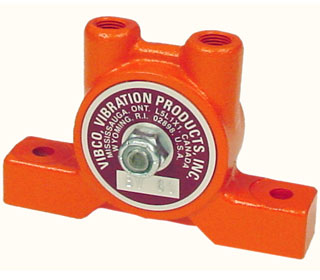

BV-60 - Pneumatic Ball Vibrator



RECOMMENDED ACCESSORIES

1/8 - Exhaust Muffler
BVM-8 - Mounting Bracket BV(S)-60; V(S)-100
36102 - Pressure Regulator
26102 - 1/4" Inline Lubricator

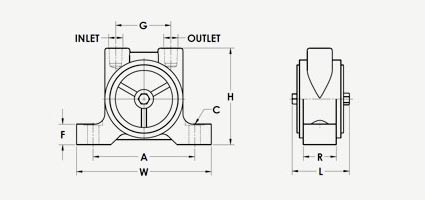

Dimensions

A 3 in
77 mm
C* 1/4 in
7 mm
L 1-11/16 in
43 mm
W 3-7/8 in
99 mm
H 2-1/2 in
64 mm
F 5/8 in
16 mm
G 1-1/4 in
32 mm
R 3/4 in
20 mm
INLET 1/8 NPT
OUTLET 1/8 NPT
* Bolt Size

Tech Data

40 psi
VPM 20000
CFM 4
60 psi
VPM 24000
CFM 6
Force lbs 55
Force Newtons 245
dB 75
Max Lbs Material in Bin 550
Weight 1.5 lbs

A Simple, Classic Design


Compressed air drives a highly chrome finished and hardened steel ball around a hardened, highly ground, and polished ball race at a high rate of speed to produce high frequency vibration. Ball vibrators require clean air and lubrication.

Top Quality, Fastest Delivery


VIBCO manufactures all of our products in the United States according to strict quality standards so you can be confident that you are getting the best ball vibrator on the market. Like all standard VIBCO products, our ball vibrators are available from stock for same day or next day shipping.

Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.
