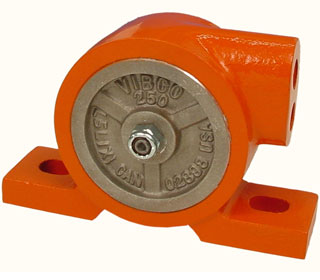

V-250 - Pneumatic Ball Vibrator



RECOMMENDED ACCESSORIES

26102 - 1/4" Inline Lubricator
1/4 - Exhaust Muffler
VSM-3 - Mounting Plate for V,VS-250, V,VS-320
3X5CH-IN - Channel Iron (Inches)
36102 - Pressure Regulator

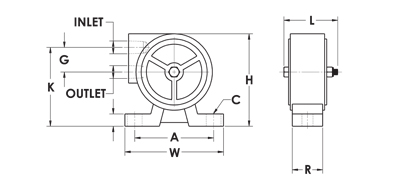

Dimensions

A 4 in
102 mm
C* 1/2 in
13 mm
L 2-7/16 in
62 mm
W 5-9/16 in
142 mm
H 3-1/2 in
89 mm
G 1-1/16 in
27 mm
K 2-15/16 in
75 mm
R 1-1/2 in
39 mm
INLET 1/4 NPT
OUTLET 1/4 NPT
* Bolt Size

Tech Data

40 psi
VPM 9200
CFM 8
60 psi
VPM 10500
CFM 11
80 psi
VPM 11000
CFM 13
Force lbs 380
Force Newtons 1691
dB 72
Max Lbs Material in Bin 3800
Weight 3.8 lbs

A Simple, Classic Design


Compressed air drives a highly chrome finished and hardened steel ball around a hardened, highly ground, and polished ball race at a high rate of speed to produce high frequency vibration. Ball vibrators require clean air and lubrication.

Top Quality, Fastest Delivery


VIBCO manufactures all of our products in the United States according to strict quality standards so you can be confident that you are getting the best ball vibrator on the market. Like all standard VIBCO products, our ball vibrators are available from stock for same day or next day shipping.

Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
