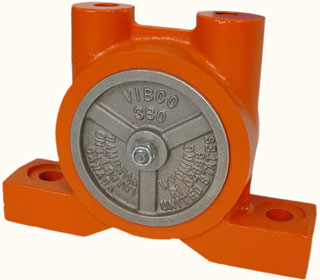

BV-380 - Pneumatic Ball Vibrator



RECOMMENDED ACCESSORIES

26123 - 3/8" Inline Lubricator
3/8 - Exhaust Muffler
BVM-5 - Mounting Plate for BV,BVS-380
4X6.25CH-IN - Channel Iron (Inches)
36123 - Pressure Regulator

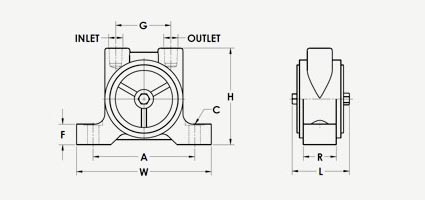

Dimensions

A 6 in
153 mm
C* 5/8 in
16 mm
L 2-15/16 in
75 mm
W 7-7/8 in
201 mm
H 5-3/4 in
147 mm
F 1-1/8 in
29 mm
G 2-13/16 in
72 mm
R 2 in
51 mm
INLET 3/8 NPT
OUTLET 3/8 NPT
* Bolt Size

Tech Data

40 psi
VPM 5500
CFM 10
60 psi
VPM 6200
CFM 15
80 psi
VPM 6500
CFM 20
Force lbs 600
Force Newtons 2669
dB 82
Max Lbs Material in Bin 6000
Weight 10 lbs

A Simple, Classic Design


Compressed air drives a highly chrome finished and hardened steel ball around a hardened, highly ground, and polished ball race at a high rate of speed to produce high frequency vibration. Ball vibrators require clean air and lubrication.

Top Quality, Fastest Delivery


VIBCO manufactures all of our products in the United States according to strict quality standards so you can be confident that you are getting the best ball vibrator on the market. Like all standard VIBCO products, our ball vibrators are available from stock for same day or next day shipping.

Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
