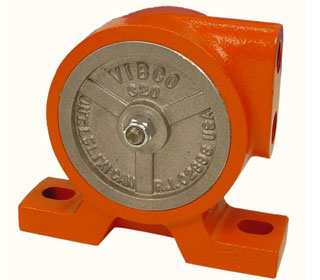

V-320 - Pneumatic Ball Vibrator



RECOMMENDED ACCESSORIES

3/8 - Exhaust Muffler
36123 - Pressure Regulator
26123 - 3/8" Inline Lubricator
VSM-3 - Mounting Plate for V,VS-250, V,VS-320
4X6.25CH-IN - Channel Iron (Inches)

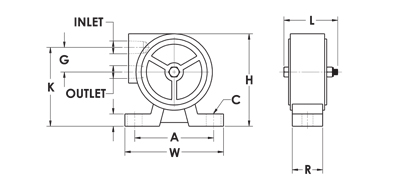

Dimensions

A 4 in
102 mm
C* 1/2 in
13 mm
L 2-3/4 in
70 mm
W 5-9/16 in
142 mm
H 4-7/8 in
124 mm
G 1-3/8 in
35 mm
K 4-1/8 in
105 mm
R 1-1/2 in
39 mm
INLET 3/8 NPT
OUTLET 3/8 NPT
* Bolt Size

Tech Data

40 psi
VPM 7500
CFM 12
60 psi
VPM 8900
CFM 14
80 psi
VPM 10000
CFM 17
Force lbs 650
Force Newtons 2892
dB 78
Max Lbs Material in Bin 6500
Weight 4.8 lbs

A Simple, Classic Design


Compressed air drives a highly chrome finished and hardened steel ball around a hardened, highly ground, and polished ball race at a high rate of speed to produce high frequency vibration. Ball vibrators require clean air and lubrication.

Top Quality, Fastest Delivery


VIBCO manufactures all of our products in the United States according to strict quality standards so you can be confident that you are getting the best ball vibrator on the market. Like all standard VIBCO products, our ball vibrators are available from stock for same day or next day shipping.
