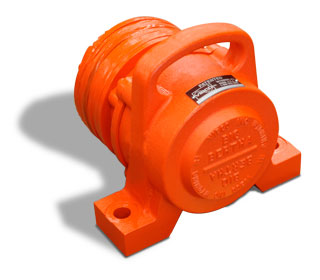

PF-1500 - Pneumatic Vibrator



RECOMMENDED ACCESSORIES

6X10.5CH-IN - Channel Iron (Inches)
PFM-1 - Mounting Plate for PF/HF-800,1200,1500

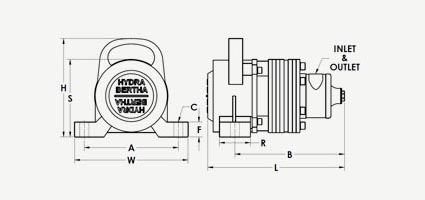

Dimensions

A 8-1/2 in
216 mm
B 8-1/2 in
216 mm
C* 3/4 in
20 mm
L 11-1/4 in
286 mm
W 10-3/8 in
264 mm
H 8-3/4 in
223 mm
F 1-3/8 in
35 mm
S 7-3/8 in
188 mm
* Bolt Size
INLET 1/4 NPT
OUTLET 1/4 NPT

Tech Data

60 psi
VPM 3500
CFM 31
Force lbs 1500
Force Newtons 6672
Weight 60 lbs

Ideal for the Toughest Applications


Big Buster PF Pneumatic Vibrators are ideal for the toughest applications. From unloading railcars to moving materials in huge bins and hoppers (over 150,000 lbs.) — there's a VIBCO Big Buster that can do the job.

VIBCO Big Buster PF Vibrators provide high force and low frequency and are designed for continuous duty, lubrication is required. Precise speed control allows "tuning" of the vibrator so you can achieve the best possible results. Big Buster vibrators are available with a clamp-on base for portability and a bolt-on base for permanent mounting.

Delivered On Time... Your Time


VIBCO understands that long lead times cost you money — that's why all of VIBCO's standard products ship the same day or very next day we receive your order. We also make sure that you receive the factory support that you need by having live, friendly customer service agents available to assist you from 7:30am — 8:00pm EST, and 24 hour technical support.

Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
