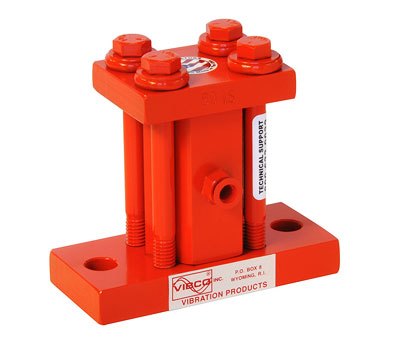

50-1S - Piston Vibrator



RECOMMENDED ACCESSORIES

26102 - 1/4" Inline Lubricator
46102 - Filter/Regulator 1/4" NPT
86102 - Ball Valve 1/4"
1/4SV - Solenoid Valve
PM-1 - Mounting Channel For 50-1

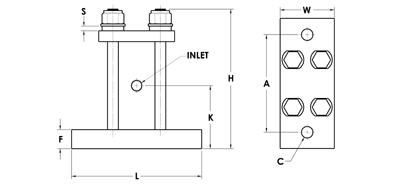

Dimensions

A 3-1/2 in
89 mm
C* 1/2 in
13 mm
L 4-1/2 in
115 mm
W 2 in
51 mm
H 4-9/16 in
116 mm
F 5/8 in
16 mm
S 3/16 in
5 mm
INLET 1/8 NPT
* Bolt Size

Tech Data

40 psi
VPM 3900
CFM 3.5
60 psi
VPM 5400
CFM 4
80 psi
VPM 6500
CFM 5
Max Lbs Material in Bin 100-200
Weight 5 lbs


VIBCO MODEL 50 PISTON VIBRATORS


The perfect choice for the toughest material flow problems - sticky, high-moisture, and coarse materials are no match for the high impact, linear force of a VIBCO Model 50 Piston Vibrator.   Read a VIBCO Piston Vibrator customer story


Use VIBCO Model 50 Piston Vibrators on bins, chutes, and weigh batchers. Compact powdered and viscous materials in containers and forms; activate screens and precipitators.


VIBCO Model 50 Vibrators are used in thousands of applications in mining, chemical, plastics, concrete products, foundry, steel and paper industries. See how VIBCO users solve material flow problems.


Silent Operating Piston


The air cushioned piston on this unit typically reduces noise by 10 or more dB over a standard impacting piston. Order one size larger when replacing a standard impacting piston with a silent piston.

Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
