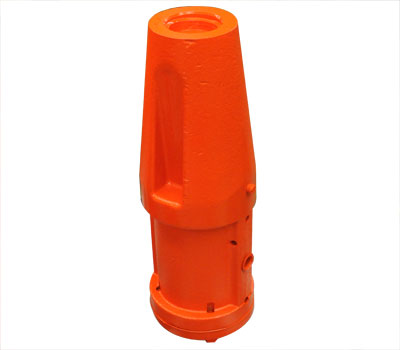

TUPAC-69 - Piston Vibrator



RECOMMENDED ACCESSORIES

3/8SV - Solenoid Valve
86123 - Ball Valve 3/8"
26123 - 3/8" Inline Lubricator
46123 - Filter/Regulator 3/8" NPT

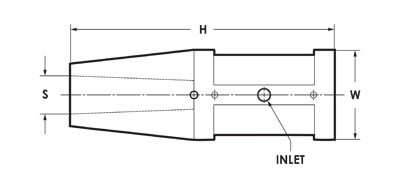

Dimensions

W 4-1/2 in
114 mm
H 13-3/8 in
340 mm
S 1-15/16 in
49 mm
INLET 3/8 NPT

Tech Data

40 psi
VPM 3000
CFM 8
Weight 10 lbs


TUPAC-69 Electrostatic Precipitator Rapper


Specifically designed for dislodging dust collected in an Electrostatic Precipitator.  The tapered mount design conforms to most shaft and adapter designs currently in use.  Piston and bore design produce higher frequency and force, using less air than competitive units.

One-piece ductile iron housing and spring-less design ensure durable, long effective life.

A proven solution for electrostatic precipitators with internal bore coating for enhanced performance

Fits most tapered shafts.
