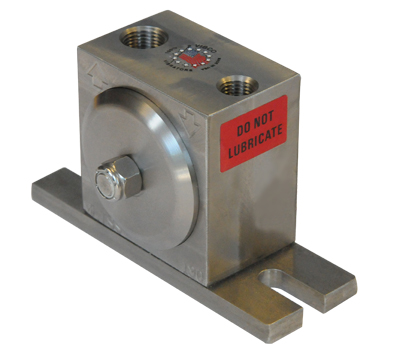

MHISS-190 - Pneumatic Turbine Vibrator
Accessories
Documents
Dimensions
Tech Data
RECOMMENDED
ACCESSORIES
46102 - Filter/Regulator 1/4" NPT
3/8SSM - Exhaust Muffler, S'Stl.
3/8PEM - 3/8 NPT Muff/Fil, Polyeth. Hi-Flo
86102 - Ball Valve 1/4"
1/4SV - Solenoid Valve
Application Bulletin
Quick Reference Guides
Complete Service Manual
Flyer
Catalog

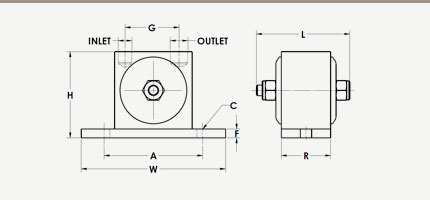

Dimensions
A
3-1/2 in
89 mm
C*
3/8 in
10 mm
L
3-3/8 in
86 mm
W
5-1/8 in
130 mm
H
3-1/16 in
78 mm
F
5/16 in
8 mm
G
1-15/16 in
50 mm
R
1-3/4 in
44 mm
INLET
1/4 NPT
OUTLET
3/8 NPT
*
Bolt Size
Tech Data
80 psi
VPM
10500
CFM
8.5
Force lbs
575
Force Newtons
2560
dB
71
Weight
7 lbs
Made In The USA
