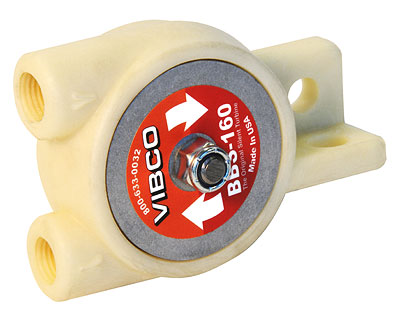

BBS-160 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

1/8 - Exhaust Muffler
46102 - Filter/Regulator 1/4" NPT
86102 - Ball Valve 1/4"
16102 - Air Filter
36102 - Pressure Regulator

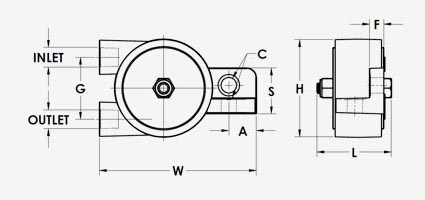

Dimensions

A 9/16 in
14 mm
C* 3/8 in
10 mm
L 2 in
51 mm
W 4-1/8 in
105 mm
H 2-9/16 in
66 mm
F 5/16 in
24 mm
G 1-3/4 in
44 mm
S 1-1/4 in
32 mm
INLET 1/4 NPT
OUTLET 1/4 NPT
* Bolt Size

Tech Data

60 psi
VPM 5500
CFM 5
80 psi
VPM 9000
CFM 7
Force lbs 160
Force Newtons 712
dB 67
Max Lbs Material in Bin 1600
Weight 1 lbs

VIBCO BBS Silent Pneumatic Turbine Vibrators are an ideal choice for small bins and hoppers, chutes, and other light material handling applications.


  • Use VIBCO BBS Turbine Vibrators on any new or existing turbine vibrator installation, or to replace your old, noisy, messy piston or ball vibrators
  • VIBCO BBS Silent Pneumatic Turbine vibrators feature a tapped, threaded exhaust, aluminum housing and single-bolt-mount for easy installation.
  • Lower-cost solution
  • Virtually silent and maintenance free
