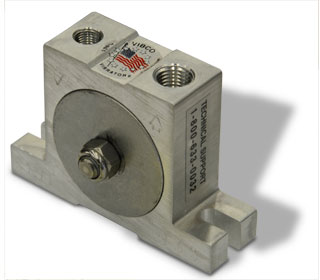

MHI-130 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

1/4PEM - 1/4" Npt Polyethalene Muffler
Solenoid Valve
Filter/Regulator 1/4" NPT
Ball Valve 1/4"
Mounting Plate for B,BV,BVS-130

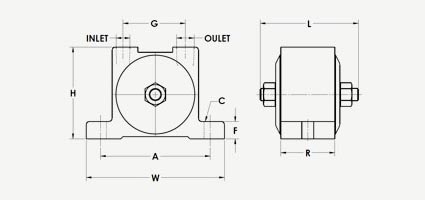

Dimensions

A 2-3/4 in
70 mm
C* 1/4 in
7 mm
L 1-7/8 in
48 mm
W 3-1/2 in
89 mm
H 2-1/2 in
64 mm
F 1/2 in
13 mm
G 1-7/16 in
37 mm
R 1-7/16 in
37 mm
INLET 1/8 NPT
OUTLET 1/4 NPT
* Bolt Size

Tech Data

80 psi
VPM 21000
CFM 5.5
Force lbs 300
Force Newtons 1340*
dB 68
Weight 1 lbs

VIBCO MLT and MHI Millennium™ Sanitary Turbine Vibrators are an ideal choice for sanitary, food, medical, and pharmaceutical industries including harsh chemical environments.


  • Use VIBCO MLT and MHI Millennium™ Turbine Vibrators on any new or existing turbine vibrator application or to replace worn, noisy or messy ball or piston vibrators.
  • VIBCO MLT and MHI Millennium™ Turbine Vibrators feature extruded aluminum housings, stainless steel shafts, and aircraft aluminum covers, giving these vibrators additional strength, durability, and long life
  • Can be used with 30 to 80 PSI
  • High temperature environment models are available.
  • Virtually silent vibrator with low air consumption and is maintenance free
