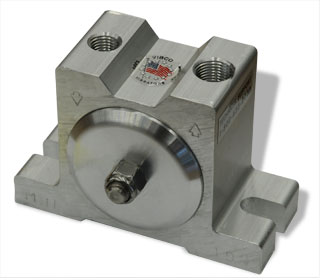

MHI-190 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

Mounting Plate for B,BV,BVS-160/190
Solenoid Valve
Filter/Regulator 1/4" NPT
Ball Valve 1/4"
Exhaust Muffler, S'Stl.
3/8 NPT Muff/Fil, Polyeth. Hi-Flo

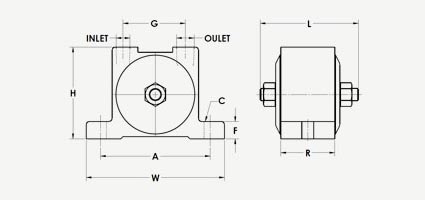

Dimensions

A 3-1/2 in
89 mm
C* 3/8 in
10 mm
L 3-3/8 in
86 mm
W 4-1/2 in
115 mm
H 3-3/16 in
81 mm
F 5/8 in
16 mm
G 1-15/16 in
50 mm
R 1-15/16 in
50 mm
INLET 1/4 NPT
OUTLET 3/8 NPT
* Bolt Size

Tech Data

60 psi
VPM 8000
CFM 7.5
80 psi
VPM 10500
CFM 8.5
Force lbs 575*
Force Newtons 2560*
dB 71
Weight 2 lbs

VIBCO MLT and MHI Millennium™ Sanitary Turbine Vibrators are an ideal choice for sanitary, food, medical, and pharmaceutical industries including harsh chemical environments.


  • Use VIBCO MLT and MHI Millennium™ Turbine Vibrators on any new or existing turbine vibrator application or to replace worn, noisy or messy ball or piston vibrators.
  • VIBCO MLT and MHI Millennium™ Turbine Vibrators feature extruded aluminum housings, stainless steel shafts, and aircraft aluminum covers, giving these vibrators additional strength, durability, and long life
  • Can be used with 30 to 80 PSI
  • High temperature environment models are available.
  • Virtually silent vibrator with low air consumption and is maintenance free
