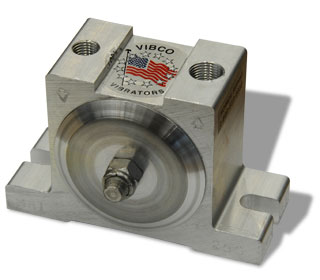

MHI-250 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

3/8SSM - Exhaust Muffler, S'Stl.
3/8PEM - 3/8 NPT Muff/Fil, Polyeth. Hi-Flo
46102 - Filter/Regulator 1/4" NPT
BVM-3 - Mounting Plate for B,BV,BVS-250
86102 - Ball Valve 1/4"
1/4SV - Solenoid Valve

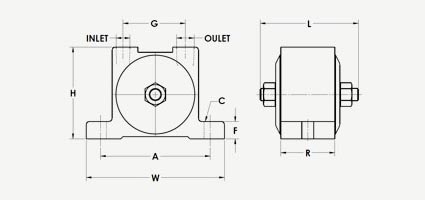

Dimensions

A 4 in
102 mm
C* 3/8 in
10 mm
L 3-1/2 in
89 mm
W 5 in
128 mm
H 3-3/8 in
86 mm
F 5/8 in
16 mm
G 2-1/4 in
58 mm
R 2-1/4 in
58 mm
INLET 1/4 NPT
OUTLET 3/8 NPT
* Bolt Size

Tech Data

60 psi
VPM 7400
CFM 8
80 psi
VPM 10200
CFM 9
Force lbs 965*
Force Newtons 4290*
dB 72
Weight 2.6 lbs

VIBCO MLT and MHI Millennium™ Sanitary Turbine Vibrators are an ideal choice for sanitary, food, medical, and pharmaceutical industries including harsh chemical environments.


  • Use VIBCO MLT and MHI Millennium™ Turbine Vibrators on any new or existing turbine vibrator application or to replace worn, noisy or messy ball or piston vibrators.
  • VIBCO MLT and MHI Millennium™ Turbine Vibrators feature extruded aluminum housings, stainless steel shafts, and aircraft aluminum covers, giving these vibrators additional strength, durability, and long life
  • Can be used with 30 to 80 PSI
  • High temperature environment models are available.
  • Virtually silent vibrator with low air consumption and is maintenance free
