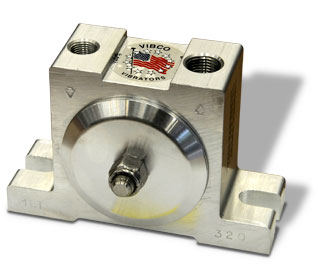

MLT-320 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

BVM-4 - Mounting Plate for B,BV,BVS-320
46123 - Filter/Regulator 3/8" NPT
3/8SV - Solenoid Valve
86123 - Ball Valve 3/8"
1/2PEM - 1/2 NPT Polyethylene Muffler
1/2SSM - Exhaust Muffler, S'Stl.

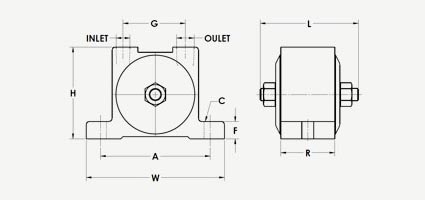

Dimensions

A 5 in
128 mm
C* 1/2 in
13 mm
L 4 in
102 mm
W 6 in
153 mm
H 4-1/4 in
108 mm
F 13/16 in
21 mm
G 2-13/16 in
72 mm
R 2-13/16 in
72 mm
INLET 3/8 NPT
OUTLET 1/2 NPT
* Bolt Size

Tech Data

60 psi
VPM 5500
CFM 9
80 psi
VPM 6800
CFM 10
Force lbs 600
Force Newtons 2669
dB 70
Max Lbs Material in Bin 5300
Weight 4.3 lbs

VIBCO MLT and MHI Millennium™ Sanitary Turbine Vibrators are an ideal choice for sanitary, food, medical, and pharmaceutical industries including harsh chemical environments.


  • Use VIBCO MLT and MHI Millennium™ Turbine Vibrators on any new or existing turbine vibrator application or to replace worn, noisy or messy ball or piston vibrators.
  • VIBCO MLT and MHI Millennium™ Turbine Vibrators feature extruded aluminum housings, stainless steel shafts, and aircraft aluminum covers, giving these vibrators additional strength, durability, and long life
  • Can be used with 30 to 80 PSI
  • High temperature environment models are available.
  • Virtually silent vibrator with low air consumption and is maintenance free
