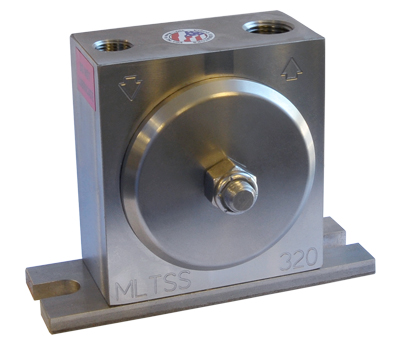

MLTSS-320 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

3/8SV - Solenoid Valve

46123 - Filter/Regulator 3/8" NPT

1/2PEM - 1/2 NPT Polyethylene Muffler

1/2SSM - Exhaust Muffler, S'Stl.

86123 - Ball Valve 3/8"

Application Bulletin
Quick Reference Guides
Complete Service Manual
Flyer
Catalog

Dimensions

A	5 in
	127 mm
C*	1/2 in
	12 mm
L	4 in
	102 mm
W	6 in
	152 mm
H	4-9/16 in
	115 mm
F	5/16 in
	8 mm
G	2-3/4 in
	70 mm
R	2 in
	51 mm
INLET	3/8 NPT
OUTLET	1/2 NPT
*	Bolt Size

Tech Data

60 psi
VPM	5500
CFM	9
80 psi
VPM	6800
CFM	10
Force lbs	600
Force Newtons	2669
dB	70
Max Lbs Material in Bin	6000
